手机出口日本，需要做哪些认证？

2016-09-27 09:52:13 栏目：通讯专栏

中国手机行业近年来快速发展，已然成为世界最大的手机制造基地及重要市场。随着中国制造走向国际化和全球化的趋势，出口到各个国家的手机也越来越多，各国对手机的质量要求也不尽相同。其中出口到日本的手机企业，需要做哪些认证呢？
像手机这类通信电子产品出口日本，需要满足日本的TELEC 和日本的JATE认证。JATE认证是检验手机是否满足日本的电信通讯商业法的要求，与之对应的TELEC认证是检验手机是否满足日本的电波法要求。
JATE和TELEC认证是什么呢，又应该如何申请呢？摩尔实验室这就和您一起探讨。
TELEC 认证

含义	申请资料	样品要求
TELEC（Telecom Engineering Center）是日本针对无线产品的强制性认证，有些类似于国内的SRRC。根据《无线电法》要求，对指定的无线电设备进行型号核准（即技术法规符合性认证）。认证是强制性的，认证机构为MIC在指定无线电设备范围认可的注册机构。	(1) 技术型号规格表 (2) 质量申明管理系统 (3) 质量证书的控制批准方法或者ISO9001证书 (4) 结构保护申明信 (5) 宣称的额定功率 (6) 天线报告 (7) 测试报告 (8) Block Diagram, Schematic Diagram, Bill of Material, Parts Placement, IC Data Sheets, Internal and External Photos, Product Description, User manual, Operational/Technical Description, Description of eripherals/Accessories (9) 标签信息 (10) 委托书/授权书（所有递交的文档建议为日文文档或英文文档）	手机类产品：需要提供一台带有有射频口的样机。短距离通讯设备：提供两套设备（一套整机，另外一套带有有射频口或者牵引出射频线的样机）

TELEC 认证流程

当企业准备好相应申请资料，根据认证流程我们开始TELEC认证测试。那么3G/4G产品做TELEC认证需要完成什么测试项呢？

3G产品TELEC 认证测试项	4G产品TELEC 认证测试项
Test Rule: MIC Notice No.88 Appebdix No.26 MIC Notice No.88 Appebdix No.29	Test Rule: MIC Notice No.88 Appendix No.43 Equipment Rule: MIC Ordinance Regulating Radio Equipment Article 49.20.
3G产品TELEC 认证测试内容	4G产品TELEC 认证测试内容
·Vibration test	·Frequency Tolerance
·Temperature-humidity test	·Occupied Bandwidth
·Frequency deviation	·Output Power(EIRP)
·Occupied frequency bandwidth	·Output Power Tolerance
·Intensity of spurious radiation or extraneous emission	·Antenna Gain
·Leak power of neighboring channels	·Unwanted Spurious Strenght 1(Spectrum Mask)
·Antenna power deviation	·Unwanted Spurious Strenght 2(Out of Band Spurious Emissions)
·Leak power at carrier off condition	·Adjacent leakage power
·Transmission speed	·Leakage power at no carrier Transmission
·Limit of radiowave etc. secondarily emitted	·Secondary radiated spurious emissions(Receiver Spurious Emission)
·System operation test
·Construction Protection Confirmation

BT4.1及以下版本（不包含BLE）测试项:

Frequency Error

Time of Occupancy (Dwell time)

Occupied Bandwidth and Spread-spectrum Bandwidth / Factor

Unwanted Emission Intensity

Antenna Power Error

Limitation of Collateral Emission of Receiver

Transmission Antenna Gain (EIRP Antenna Power)

Transmission Radiation Angle Width (3dB Beamwidth)

Radio Interference Prevention Capability

Construction Protection Confirmation

BLE和WIFI测试项：

Frequency Error

Occupied Bandwidth and Spread-spectrum Bandwidth / Factor

Unwanted Emission Intensity

Antenna Power Error

Limitation of Collateral Emission of Receiver

Transmission Antenna Gain (EIRP Antenna Power)

Transmission Radiation Angle Width (3dB Bandwidth)

Radio Interference Prevention Capability

Carrier Sense Capability

Construction Protection Confirmation

JATE 认证

含义	申请资料	样品要求
JATE（Japan Approvals Institute for Telecommunications Equipment）是日本电信设备技术符合性认证的主要注册认证机构。JATE认证标准是根据MIC要求和MIC授权的运营商的技术要求并参照日本《电信事业法》来确定的，在日本这个认证是强制性的。	(1) 产品描述 (2) 方框图 (3) 质量证书的控制批准方法或者ISO9001证书 (4) 结构保护声明信 (5) 连接图 (6) 外观尺寸 (7) 测试报告 (8) Block Diagram, Schematic Diagram, Bill of Material, Parts Placement, IC Data Sheets, Internal and External Photos, Product Description, User manual, Operational/Technical Description, Description of Pheripherals/Accessories) (9) 标签信息 (10)质量控制表格	手机类产品：需要提供一台带有有射频口的样机短短距离通讯设备：提供一套设备（一套整机）

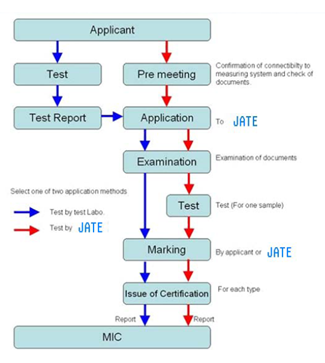

JATE 认证流程

3G产品JATE 认证测试项	4G产品JATE 认证测试项
Test Rule: MIC Notification No.99&87	Test Rule: Article 6&Article 9-2 of Ordinance Concerning Terminal Facilities etc.
3G产品JATE 认证测试内容	4G产品JATE 认证测试内容
·Testing other dialing functions	·Basic Functions
·Signal transmission timing	·Calling Functions
·Random access control	·Transmission Timing
·Location Registration Control	·Random Access Control
·Channel Reconfiguration	·Time Alignment Control
·Broadcasting Reception Level	·Location Registration Control
·Canceling Transmission	·Function for complying with channel switching indicate
·Automatic Cancellation of Poor Quality Signal	·Functions for receiving level reports
·Testing Emergency Preparedness	·Functions to comply with the direction to stop transmission
·Insulation resistance	·Function automatically to suspend transmission when the receiving level has become degraded
	·Function automatically to suspend transmission
	·Function to ensure important communication
	·Congestion Informing Function
	·Emergency Report Function
	·Function to prevent change of inherent information that is part of the mobile telephone terminal information
	·Special mobile telephone terminals

BT和WIFI使用的JATE测试项：

Article 6 Insulation Resistance etc. Insulation resistance

Article 9 Terminal facilities using Electrical waves
within Terminal facilities
Terminal equipment using RF in itself Code length of ID code.
For checking empty channel equipment shall confirm channels in accordance with another notification issued by Minister of MIC and make a communication link where only there is empty Channel.

注意噢，JATE的测试与其他射频测试不同，因为这项认证是需要信令（message log）来证明底层协议对错，一般来说信令的交换来决定EUT是否能正常运行。
看到这里，是不是对日本JATE和TELEC认证有一定认识了呢，还在为无线通信产品出口日本，要做的准备工作感到茫然么？这份干货或许能帮助您呢，日本认证找哪个检验机构靠谱？摩尔实验室是您最专业贴心的伙伴！
摩尔实验室具备丰富的日本认证经验，能帮助客户无线通信产品出口日本完成JATE和TELEC认证，帮助客户产品尽快进入日本市场。想了解更多日本认证问题，快来联系我们吧。
